Storage SuperServer SSG-229J-5BE36JBF
- Drive Bays ECC Supported
- Max Memory Size
- Max Memory Speed
Key Applications
- Artificial Intelligence (AI)
- Big Data Analytics and AI
- HPC and Big Data
- Data Center Enterprise Applications
- Low Power, Cost Effective
- NVMe Over Fabrics Solution
- Large Language Model (LLM)
Key Features

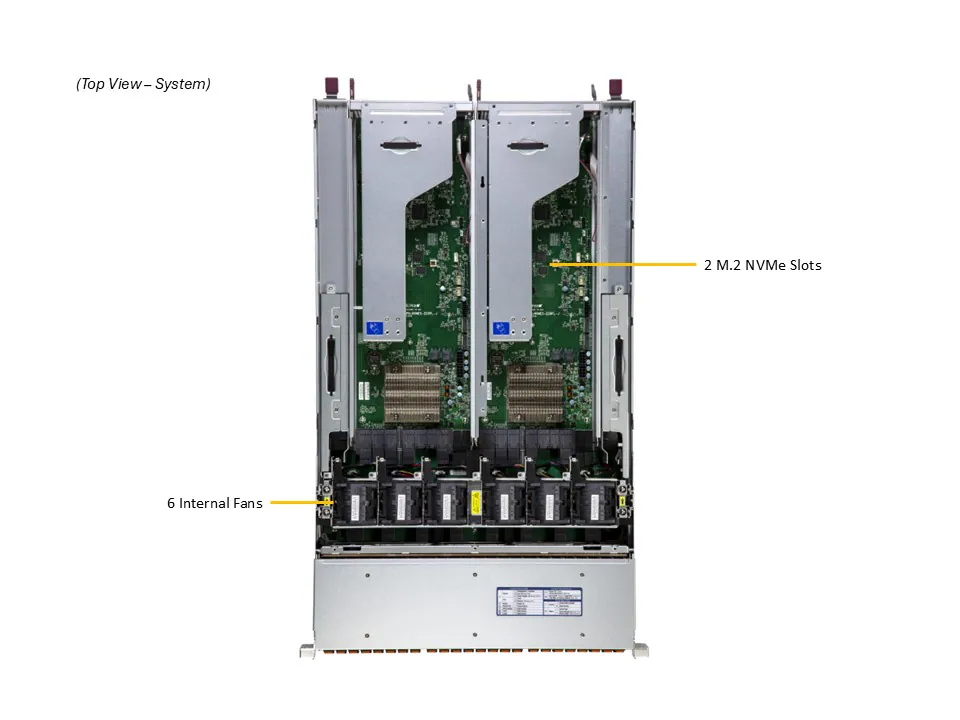

- Two hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- IPMI management with dedicated LAN.
- BF3 management with shared LAN.

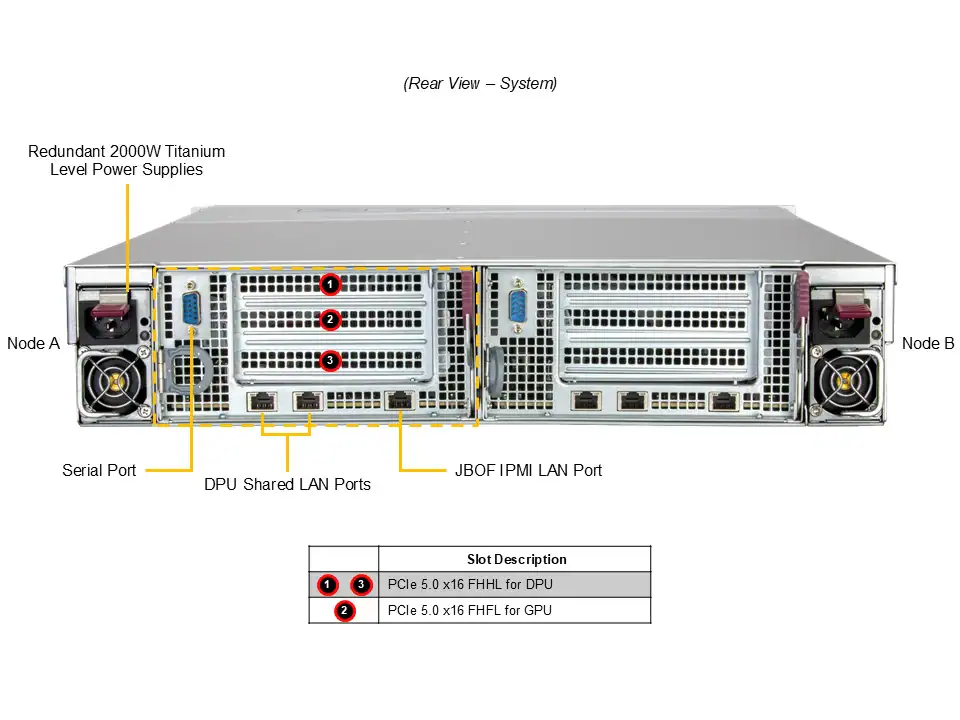

- Up to 3 PCIe 5.0 x16 FHFL slots.
- Up to 2 DPU and 1 GPU per node.

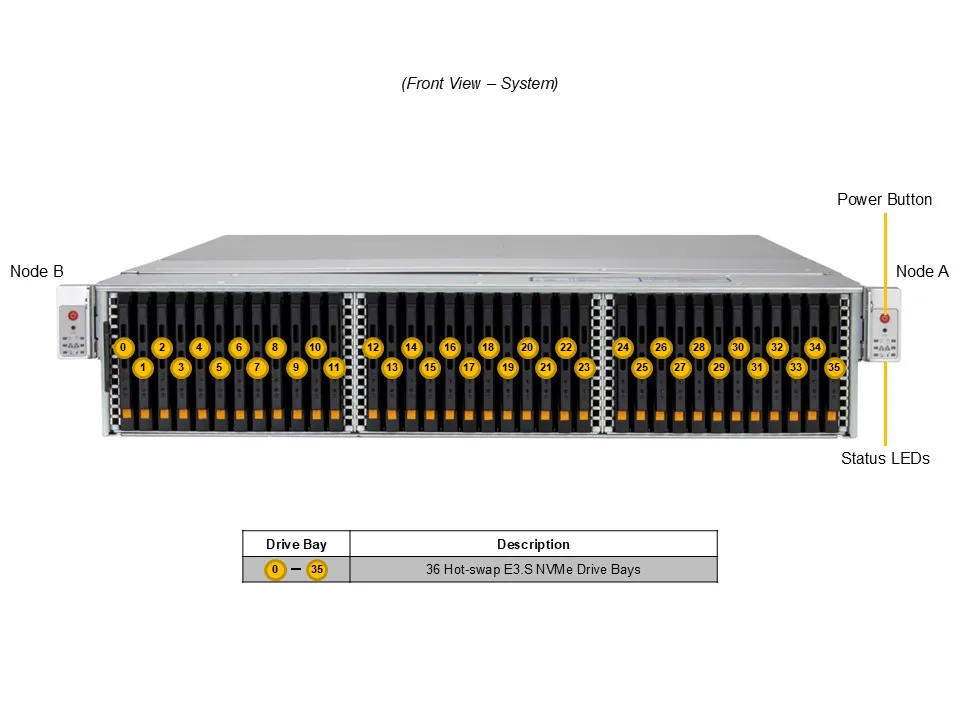

- Up to 36 front hot-swap E3.S 1T NVMe drive bays.
- 2x Redundant 2000W Titanium Level power supplies.
Request information
This product is not yet available. Submit your email and comment below, and a Nextron representative will contact you with updates and further product details.
More Specifications
- Total Drives Supported 36
- Configurable Configurable by Request Bays
- DIMM Type Bays
- Dimensions 449.4 mm Width
- CPU Manufacturer
- Manufacturer Supermicro
- Motherboard Model
- Dimensions 762 mm Depth
- Dimensions 88 mm Height
- Product Model SSG-229J-5BE36JBF W
