IoT ARS-E103-JONX-H2
- Form Factor IoT
- Supported CPU Arm Cortex-A78AE
- CPU Socket 1
-
Max Supported Memory
16 GB DDR5 ECC Supported
-
Power Supply
W Not specified
Key Applications
- Artificial Intelligence (AI)
- Imaging and Computer Vision
- Industrial Automation, Retail, Smart Medical Expert Systems
- Healthcare
- Digital Signage Kiosk, Interactive info system
Key Features

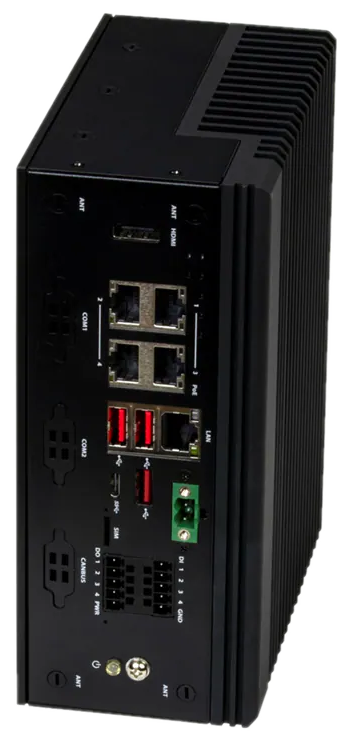

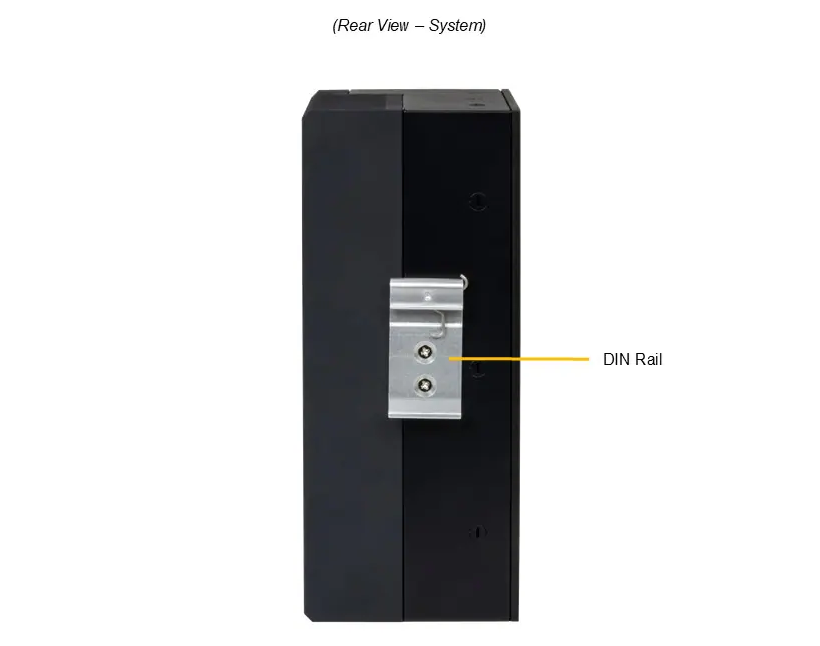

- Fanless DIN Rail Mounted System
- Jetson Orin NX Fanless Edge AI Inferencing System
- 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, up to 157 TOPS

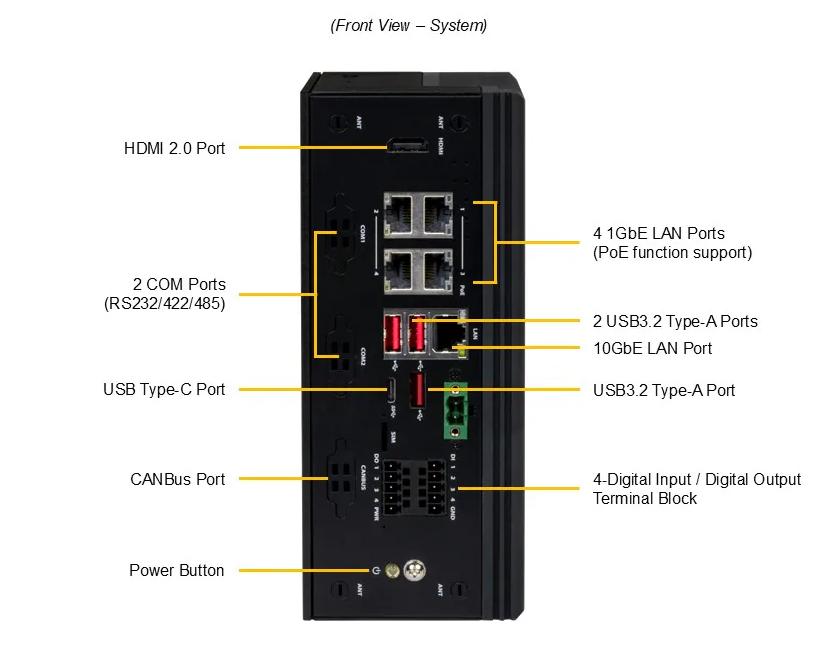

- 1 × 10G/1G LAN optional by SKU (10G: -H(2), 1G: -L(2))
- 4 × 1GbE w/ PoE or 2 × 1GbE w/ PoE+ (by AOM-POE-001 jumper setting)
- 1 × M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM
- 1 × M.2 E-key 2230 (PCIe x1, USB2.0)
- 1 × M.2 M-key 2280 (PCIe 4.0 x4)
- 1 × NVMe 2280 at M.2 M-Key
- DC 9–36V
- Operating Temperature -25℃ to 60℃ (-40°F to 131°F) with 0.7m/s airflow and industrial grade peripherals
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- CPU Manufacturer ARM
- Total Drives Supported 1
- Dimensions 140 Depth
- Dimensions 185 Width
- Dimensions 80 Height
- Manufacturer Supermicro

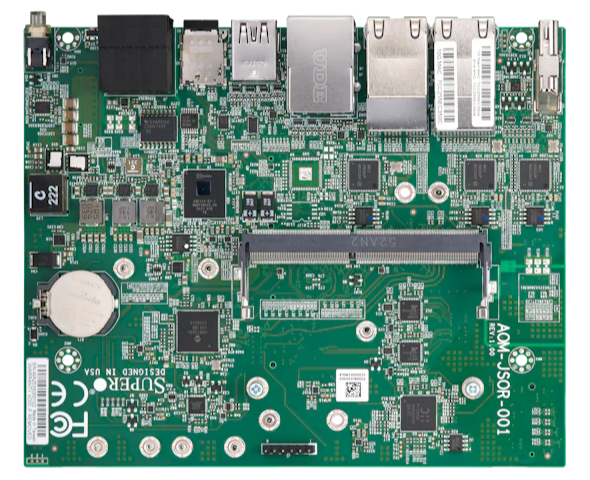

- Motherboard Model AOM-JSOR-001
- Product Model ARS-E103-JONX-H2
- DIMM Type LPDDR5X
