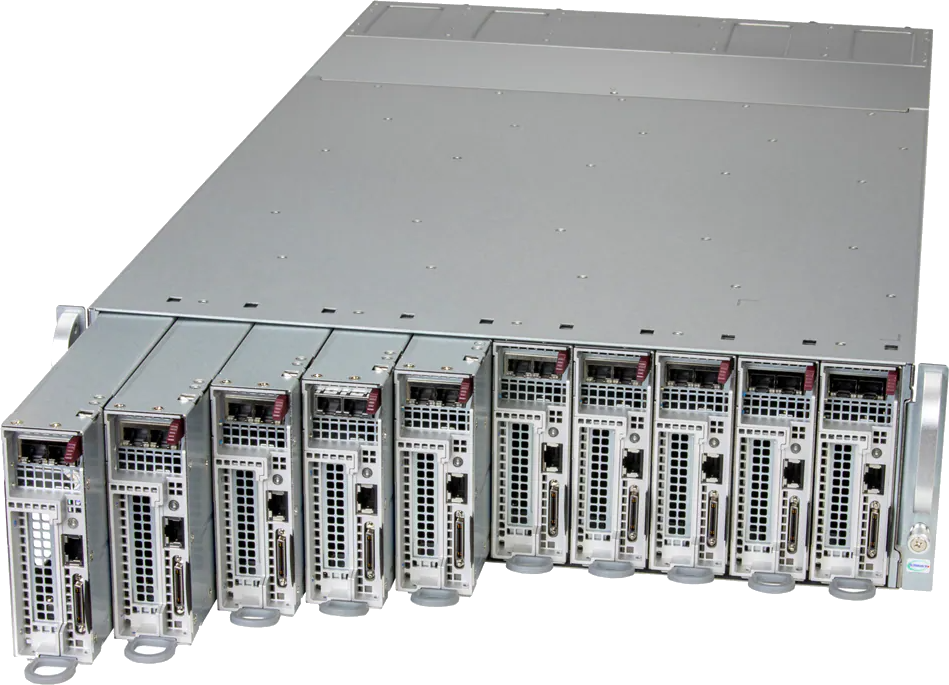

MicroCloud A+ Server AS -3015MR-H8TNR
- Form Factor 3U Rackmount
- Supported CPUs AMD EPYC 4004
- AMD EPYC 4005
- CPU Socket 1
-
Max Supported Memory
192 GB DDR5
-
Power Supply
Titanium Redundant
Key Applications
- Cloud Computing
- Web / Collocation Services
- Web Cache, CDN, Video Streaming
- Social Networking, Downloads
- Corporate - WINS, DNS, Print, Login
Key Features

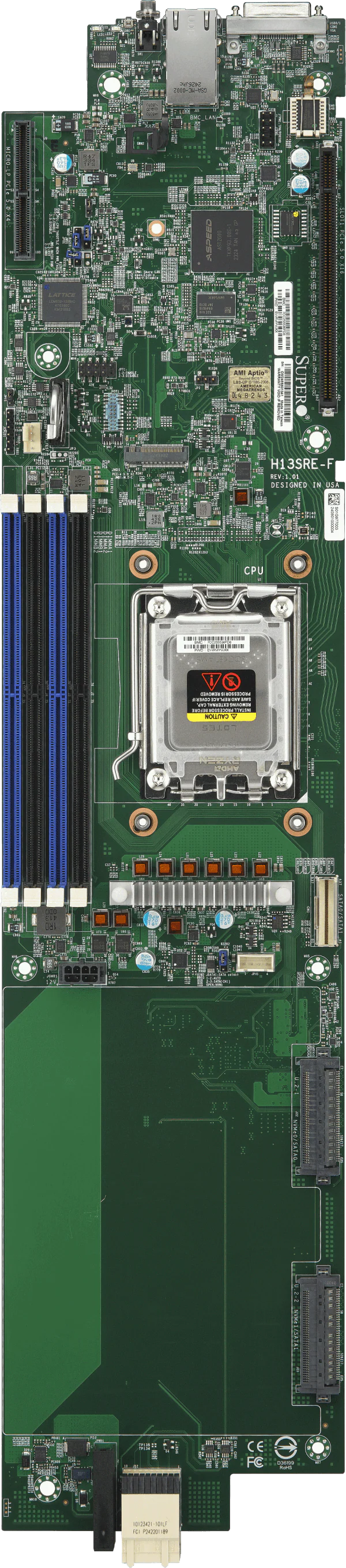

- Single Socket AM5 (LGA-1718) AMD EPYC™ 4005/4004 or Ryzen™ 7000 / 9000 Series Processor up to 170W with air cooling
- Support for up to 1 single-width PCIe GPU accelerator card
- Up to 192GB DDR5-5600MT/s (1DPC) / 3600MT/s (2DPC), in 4 DIMM sockets

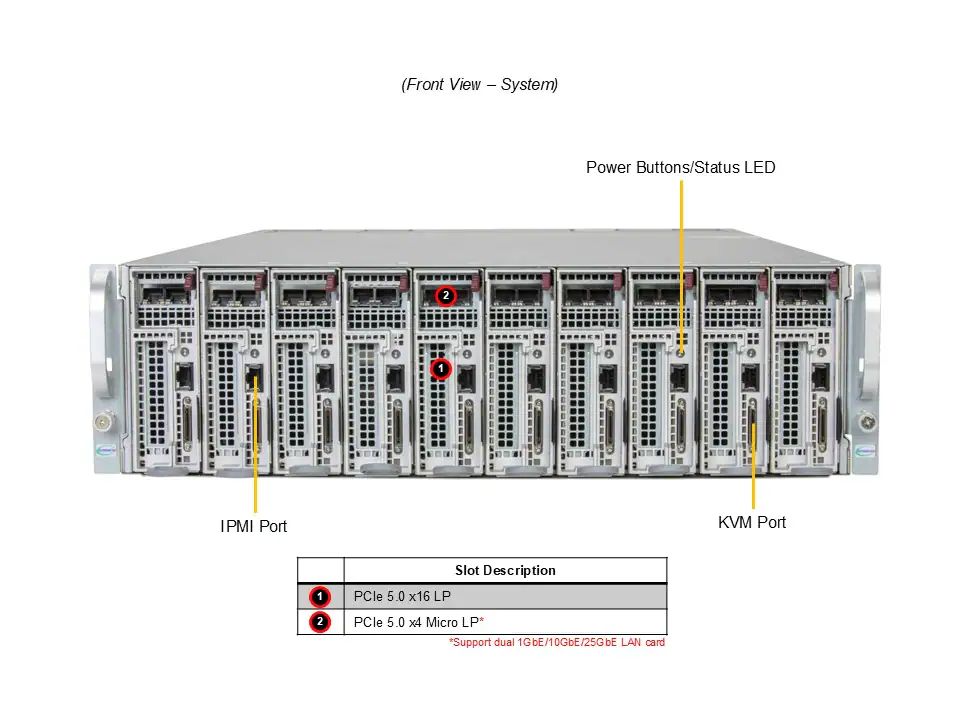

- Up to 1 PCIe 5.0 x16 LP + 1 PCIe 5.0 x4 MicroLP slots

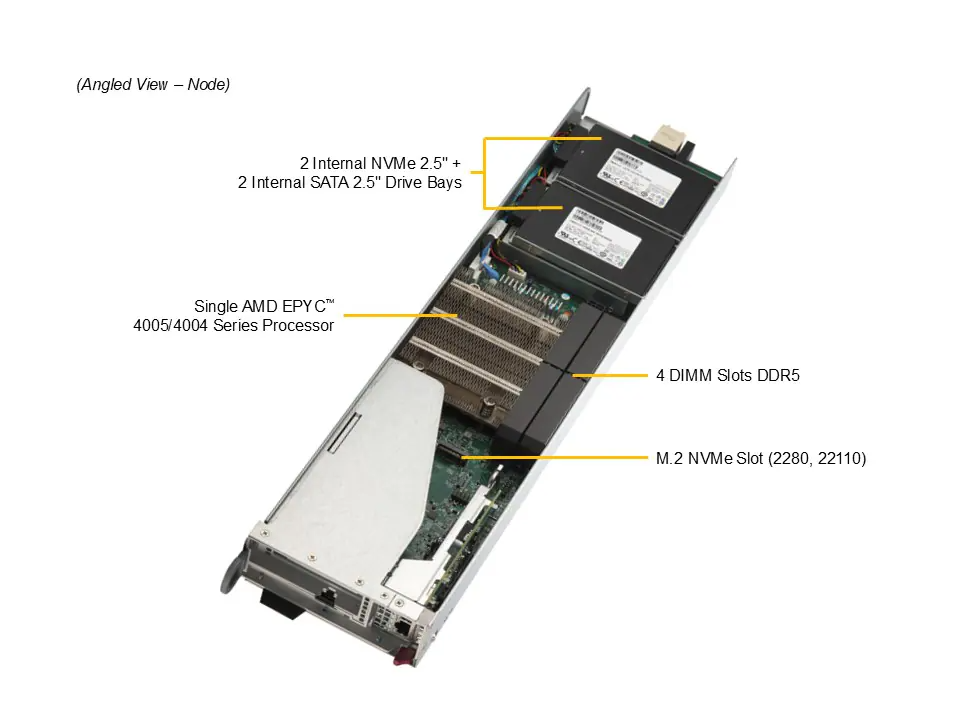

- Up to 4 internal 2.5" (2 NVMe and 2 SATA) drive bays

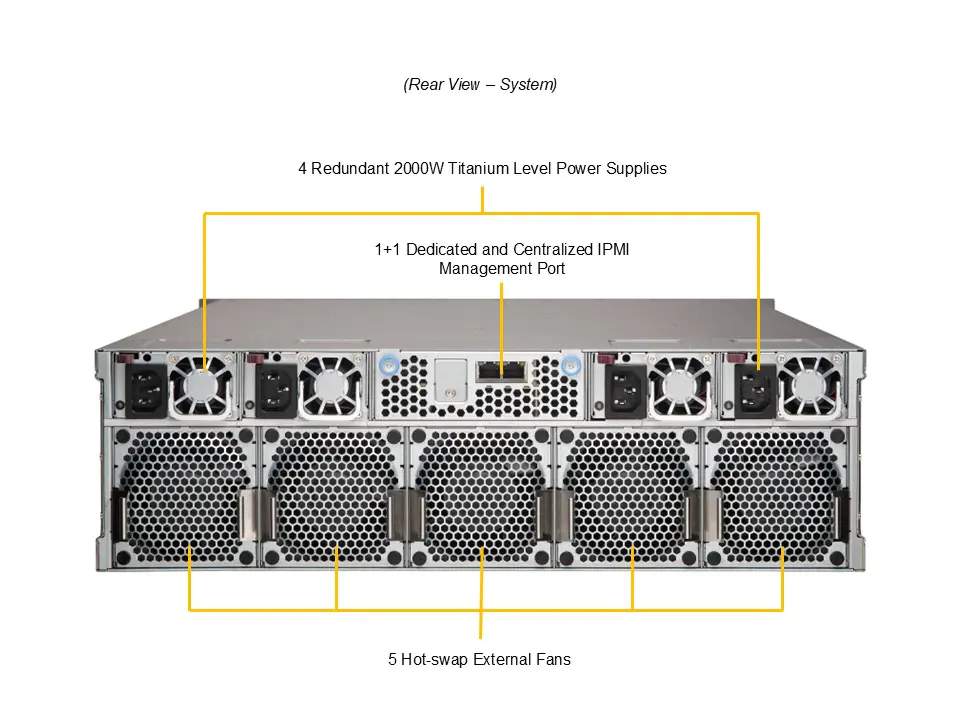

- 2000W Redundant (2+2 or 3+1) 80+ Titanium Level high-efficiency power supplies
Request a quote today
Share your email below to express your interest, and a Nextron representative will reach out shortly with detailed information and a personalized quote for your selected product.
More Specifications
- Configurable Configurable by Request
- TDP 170 W
- Operating Temperature 10°C ~ 35°C (50°F ~ 95°F)
- CPU Manufacturer AMD
- Dimensions 131 mm Height
- Dimensions 449 mm Width
- Dimensions 775 mm Depth
- Product Model AS-3015MR-H10TNR
- M.2 1 M.2 NVMe slot
- PCI-e PCIe 5.0 (x16 LP + x4 MicroLP, single-width GPU support)
- USB 2 USB 2.0 ports
- Video Output 1 VGA
- Cores up to 16
- DIMM Type UDIMM
- NVMe 2 NVMe 2.5" + 1 M.2 NVMe
